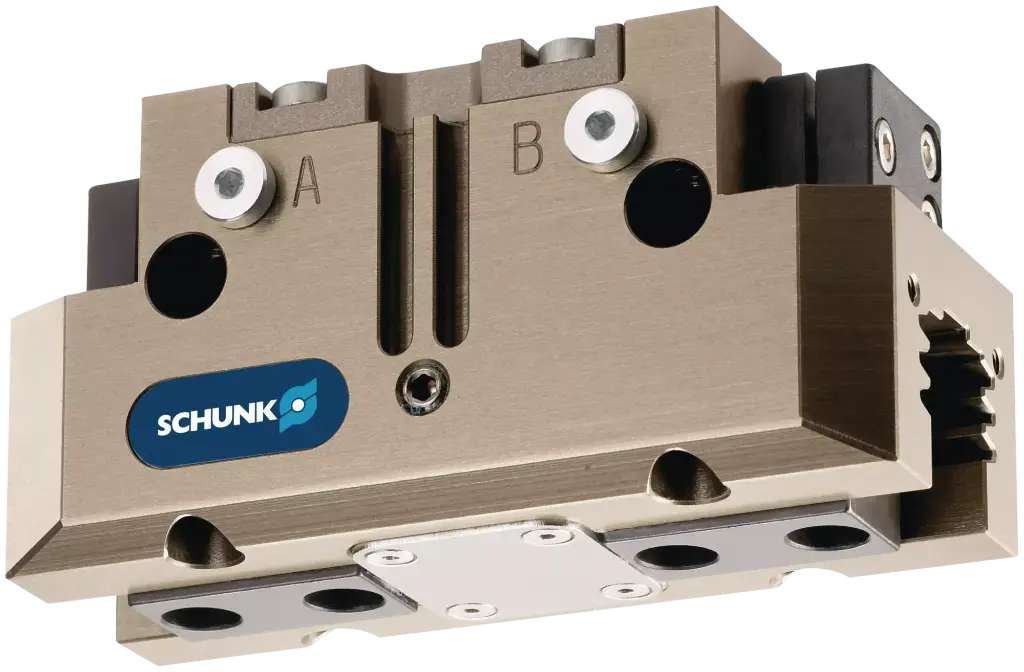

[371471] PGN-plus 80-2-IS (new)

Stroke per jaw [mm] 4 Opening force [N] 1280 Opening force (with finger lengths of 0 mm) [N] 1490 Min. spring force [N] 320 Weight [kg] 0.6 Recommended workpiece weight [kg] 4.3 Fluid consumption double stroke [cm³] 42.5 Min. operating pressure [bar] 4 Max. operating pressure [bar] 6.5 Nominal operating pressure [bar] 6 Min. air purge pressure [bar] 0.5 Max. air purge pressure [bar] 1 Closing time [s] 0.05 Opening time [s] 0.03 Closing/opening time with spring [s] 0.1 Max. permissible finger length [mm] 100 Max. permissible weight per finger [kg] 0.6 IP protection class 40 Min. ambient temperature [°C] 5 Max. ambient temperature [°C] 90 Repeat accuracy [mm] 0.01 Cleanroom class ISO 14644-1 5 Length X [mm] 96 Width Y [mm] 42 Height Z [mm] 67 Moment Mx max. [Nm] 60 Moment My max. [Nm] 95 Moment Mz max. [Nm] 55 Max. axial force Fz max. [N] 1500
