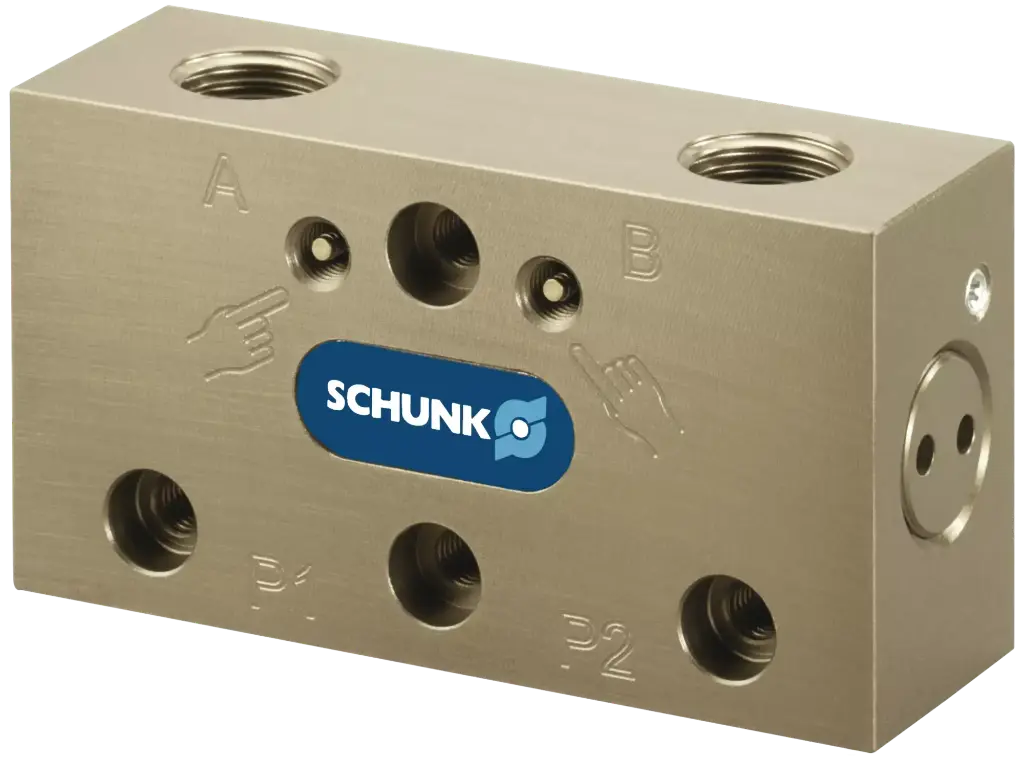

SCHUNK SDV-P 07 (New) - 403131

Thread G1/4" Nominal diameter (DN) [mm] 7 Flow rate, hose Ø 6mm [l/min] 350 Flow rate, hose Ø 8mm [l/min] 500 Flow rate, hose Ø 10mm [l/min] 600 Recommended hose diameter [mm] 8 Pressure loss, input/output [bar] 1 Min. operating pressure [bar] 2 Max. operating pressure [bar] 10 IP protection class 67 Min. ambient temperature [°C] -10 Max. ambient temperature [°C] 80 Valve switching time [ms] 10 Weight [kg] 0.2
