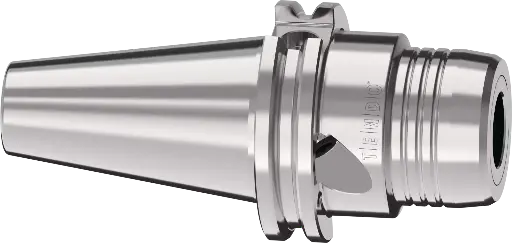

1479979

Technology Hydraulic expansion toolholder Series TENDO Silver Toolholder interface CAT 40 Toolholder standard ASME B5.50 Clamping diameter D1 14 mm D2 [mm] 34 D3 [mm] 49 D6 [mm] 30.6 Projecting length L1 [mm]/[inch] 63,5 mm / 2.5" | L2 [mm] 46 | L3 [mm] 10 | L4 [mm] 26 | L5 [mm] 44.45 | G M10x1 | Min. torque [Nm] 110 | Weight [kg] 1.1

1479978

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface CAT 40 | Toolholder standard ASME B5.50 | Clamping diameter D1 12 mm | D2 [mm] 32 | D3 [mm] 49 | D6 [mm] 28.9 | Projecting length L1 [mm]/[inch] 63,5 mm / 2.5" | L2 [mm] 46 | L3 [mm] 10 | L4 [mm] 26 | L5 [mm] 44.45 | G M10x1 | Min. torque [Nm] 90 | Weight [kg] 1.1

1479977

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface CAT 40 | Toolholder standard ASME B5.50 | Clamping diameter D1 10 mm | D2 [mm] 30 | D3 [mm] 49 | D6 [mm] 26.7 | Projecting length L1 [mm]/[inch] 63,5 mm / 2.5" | L2 [mm] 41 | L3 [mm] 10 | L4 [mm] 27 | L5 [mm] 44.45 | G M5 | Min. torque [Nm] 45 | Weight [kg] 1.1

1479975

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface CAT 40 | Toolholder standard ASME B5.50 | Clamping diameter D1 8 mm | D2 [mm] 28 | D3 [mm] 49 | D6 [mm] 25.3 | Projecting length L1 [mm]/[inch] 63,5 mm / 2.5" | L2 [mm] 37 | L3 [mm] 10 | L4 [mm] 25 | L5 [mm] 44.45 | G M5 | Min. torque [Nm] 23 | Weight [kg] 1.1

1479973

Technology Hydraulic expansion toolholder | | Series TENDO Silver | Toolholder interface CAT 40 | Toolholder standard ASME B5.50 | Clamping diameter D1 6 mm | D2 [mm] 26 | D3 [mm] 44.45 | D6 [mm] 23 | Projecting length L1 [mm]/[inch] 63,5 mm / 2.5" | L2 [mm] 37 | L3 [mm] 10 | L4 [mm] 24 | L5 [mm] 44.45 | G M5 | Min. torque [Nm] 16 | Weight [kg] 1.1

1476521

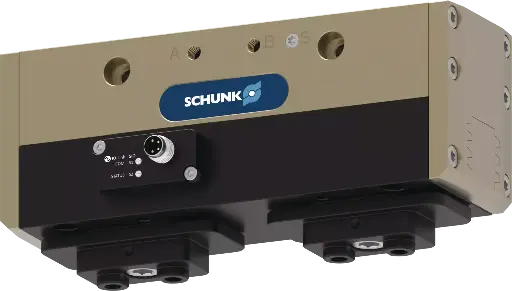

Universal gripper PGL-plus-P, Size: 16, pneumatic

1463175

TANDEM KSH3-LH 100

1460282

JGP-P 160-1

1460277

JGP-P 125-1-AS

1436820

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface CAT 40 | Toolholder standard ASME B5.50 | Clamping diameter D1 3/4" | D2 [mm] 49.25 | D6 [mm] 38 | Projecting length L1 [mm]/[inch] 64,5 mm / 2.5" | L2 [mm] 51 | L3 [mm] 10 | L4 [mm] 45.45 | G M10x1 | Min. torque [Nm] 520 | Weight [kg] 1.3

1436819

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface CAT 40 | Toolholder standard ASME B5.50 | Clamping diameter D1 5/8" | D2 [mm] 38 | D3 [mm] 49 | D6 [mm] 34.9 | Projecting length L1 [mm]/[inch] 63,5 mm / 2.5" | L2 [mm] 49 | L3 [mm] 10 | L4 [mm] 27 | L5 [mm] 44.45 | G M10x1 | Min. torque [Nm] 185 | Weight [kg] 1.2

1436818

Technology Hydraulic expansion toolholder / Series TENDO Silver / Toolholder interface CAT 40/ Toolholder standard ASME B5.50 / Clamping diameter / D1 1/2" / D2 [mm] 32 / D3 [mm] 49 / D6 [mm] 29.55 /
Projecting length L1 [mm]/[inch] 63,5 mm - 2.5" / L2 [mm] 46 / L3 [mm] 10 / L4 [mm] 24 / L5 [mm] 44.45 / G M10x1 / Min. torque [Nm] 95 / Weight [kg] 1.1

1363733

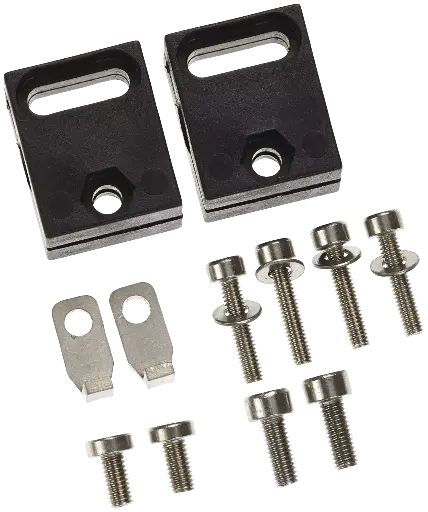

AS-APS-M1-PGN-plus-P 100-1 Set de adaptación para el APS-M1

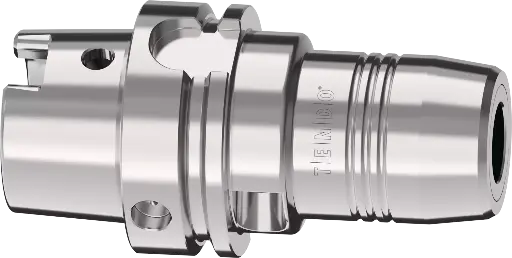

1360932

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 32 mm | D2 [mm] 62 | D6 [mm] 58 | Projecting length L1 [mm]/[inch] 125 mm / 4.9" | L2 [mm] 61 | L3 [mm] 10 | L4 [mm] 99 | G M16x1 | Min. torque [Nm] 650 | Weight [kg] 2.3

1360931

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 25 mm | D2 [mm] 57 | D6 [mm] 53 | Projecting length L1 [mm]/[inch] 120 mm / 4.7" | L2 [mm] 57 | L3 [mm] 10 | L4 [mm] 94 | G M16x1 | Min. torque [Nm] 400 | Weight [kg] 2.1

1360930

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 |Clamping diameter D1 20 mm | D2 [mm] 42 | D3 [mm] 50 | D6 [mm] 38 | Projecting length L1 [mm]/[inch] 90 mm / 3.5" | L2 [mm] 51 | L3 [mm] 10 | L4 [mm] 48 | L5 [mm] 64 | G M16x1 | Min. torque [Nm] 330 | Weight [kg] 1.2

1360929

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 18 mm | D2 [mm] 40 | D3 [mm] 50 | D6 [mm] 36 | Projecting length L1 [mm]/[inch] 90 mm / 3.5" | L2 [mm] 49 | L3 [mm] 10 | L4 [mm] 47 | L5 [mm] 64 | G M12x1 | Min. torque [Nm] 240 | Weight [kg] 1.2

1360928

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder | standard DIN ISO 12164-1 | Clamping diameter D1 16 mm | D2 [mm] 38 | D3 [mm] 50 | D6 [mm] 34 | Projecting length L1 [mm]/[inch] 90 mm / 3.5" | L2 [mm] 49 | L3 [mm] 10 | L4 [mm] 46 | L5 [mm] 64 | G M12x1 | Min. torque [Nm] 185 | Weight [kg] 1.2

1360927

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 14 mm | D2 [mm] 34 | D3 [mm] 50 | D6 [mm] 30 | Projecting length L1 [mm]/[inch] 85 mm / 3.3" | L2 [mm] 46 | L3 [mm] 10 | L4 [mm] 40 | L5 [mm] 59 | G M10x1 | Min. torque [Nm] 110 | Weight [kg] 1.1

1360926

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 12 mm | D2 [mm] 32 | D3 [mm] 50 | D6 [mm] 28 | Projecting length L1 [mm]/[inch] 85 mm / 3.3" | L2 [mm] 46 | L3 [mm] 10 | L4 [mm] 40 | L5 [mm] 59 | G M10x1 | Min. torque [Nm] 90 | Weight [kg] 1
