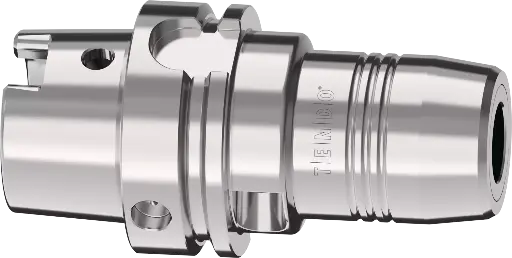

1360925

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 10 mm | D2 [mm] 30 | D3 [mm] 50 | D6 [mm] 26 | Projecting length L1 [mm]/[inch] 80 mm / 3.1" | L2 [mm] 41 | L3 [mm] 10 | L4 [mm] 35 | L5 [mm] 54 | G M8x1 | Min. torque [Nm] 45 | Weight [kg] 1

1360924

Technology Hydraulic expansion toolholder | Series TENDO Silver | Toolholder interface HSK-A 63 | Toolholder standard DIN ISO 12164-1 | Clamping diameter D1 8 mm | D2 [mm] 28 | D3 [mm] 50 | D6 [mm] 24 | Projecting length L1 [mm]/[inch] 70 mm / 2.8" | L2 [mm] 37 | L3 [mm] 10 | L4 [mm] 25 | L5 [mm] 44 | G M6 | Min. torque [Nm] 23 | Weight [kg] 1

1360923

Automation Industry Product

1316308

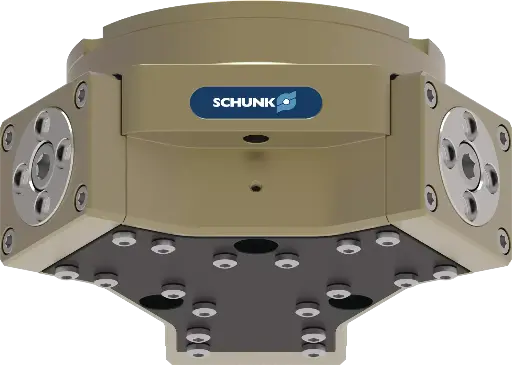

Sealed universal gripper DPZ-plus, Size: 125, pneumatic, with gripping force maintenance: IS

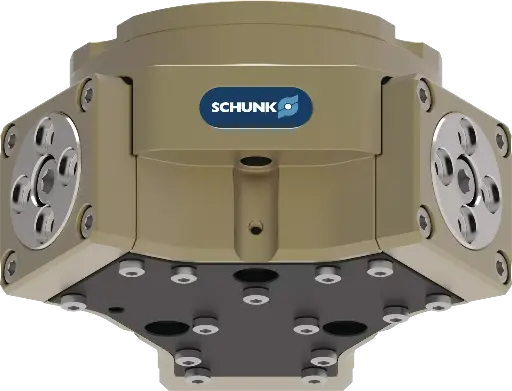

1316288

Sealed universal gripper
Sealed universal gripper DPZ-plus, Size: 80, pneumatic

Stroke per jaw: 8 mm
Closing force: 900 N
Opening force: 1000 N
Max. ambient temperature: 90 °C

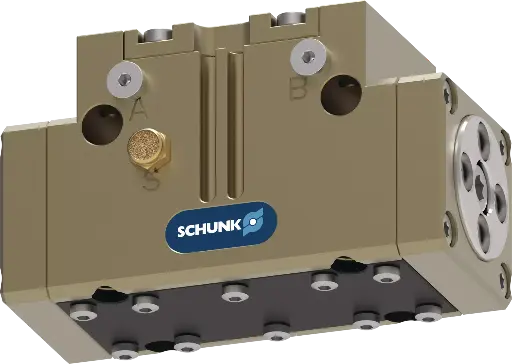

1315977

DPG-PLUS 80-1

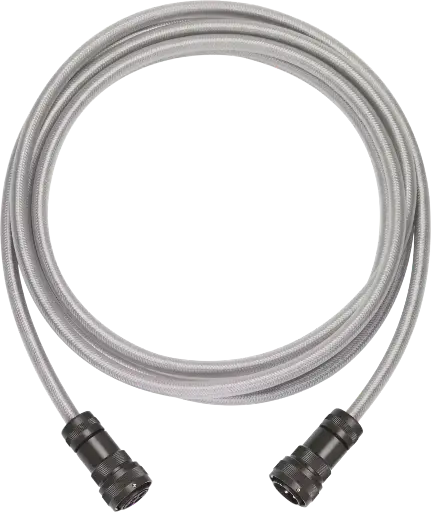

420680

Standard Accessory for Magnetic Clamping
Technology
- Connection cable for modular system
KEH plus
- For installation between control unit
KEH plus and magnetic chuck
- For connection up to 1 magnetic chuck
- Plug and Play system for easy and
quick installation
- Cable length: 5 meter metal coated
cable with rubber around to
protective against hot chips
- Weight: 2,0 kg
- Controller side: 1x 4PIN CIR 22 male
- Magnetic side: 1x 4PIN CIR 22 female
Scope of delivery:
- Connecting cable with all connectors,
length 5 meter
- Operating Manual

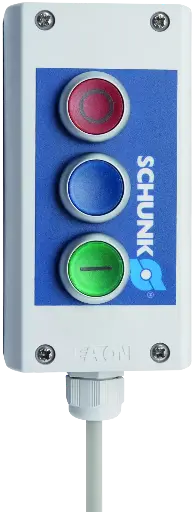

420180

- Hand remote control for modular system
KEH plus
- To control all magnetic chucks
- Dimension: 140 x 74 x 48 mm
- Cable length: 5 meter to connect to
control unit
- Weight: 0,8 kg
- High-quality case with magnetic slide
on the backside to fix the hand
remote control unit at the machine
- Without power regulation
- Wihtout selection of each magnetic
chuck, only all magnetic chucks
will be MAG / DEMAG
Scope of delivery:
- Hand remote control with cable,
length 5 meter
- Operating Manual
Total net weight: 0,98 KG
Nr.Tarifa adu: 85051990 País origen: Italien

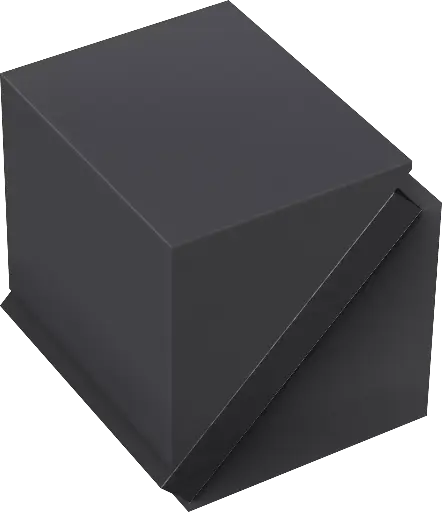

420092

PVB 50-54 POLE EXT, IT MOVABLE:21 PIECE ORDER MIN
Standard Accessory for Magnetic Clamping
Technology
Product features:
- Flexible pole extension
- Technology: Square pole
Technical data:
- Dimensions: 47 x 45 x 54 mm
- For pole size: 50 x 50 mm
- Pole thread: M8
- Stroke: 7 mm to compensate
irregularities in thickness and shapes
- Weight: 0.76 kg
Scope of delivery:
1x Fixed pole extension PVB 50-54
1x Fastening screw M8

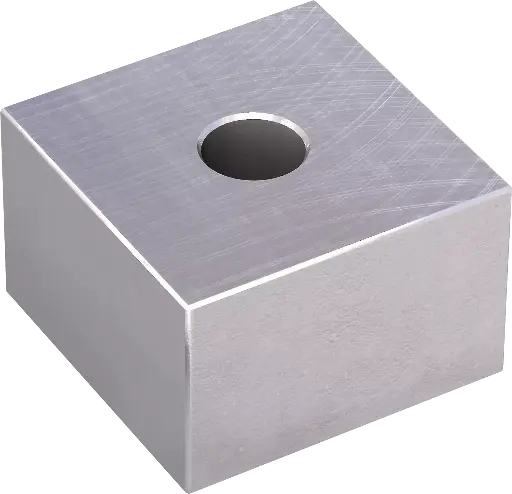

420091

PVF 50-54 POLE EXT, IT FIXED
Standard Accessory for Magnetic Clamping
Technology
Product features:
- Fixed pole extension
- Technology: Square pole
Technical data:
- Dimensions: 45 x 45 x 54 mm
- For pole size: 50 x 50 mm
- Pole thread: M8
- Weight: 0.84 kg
Scope of delivery
1x Fixed pole extension PVF 50-54
1x Fastening screw M8

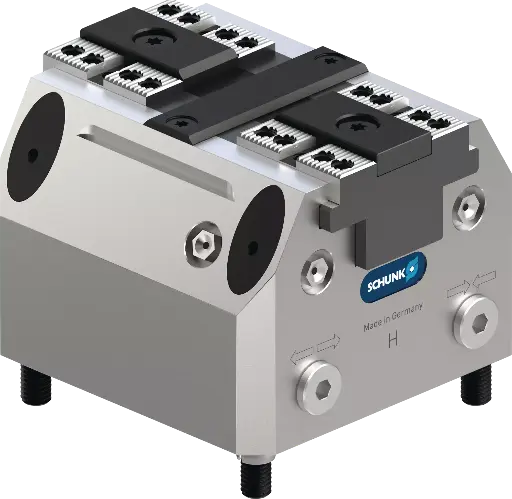

405250

HEIGH TOLERANCE +/-0,04mm L100mmXh74mm 5KG

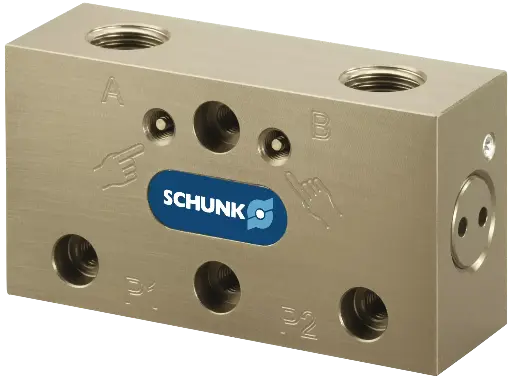

403131

Thread G1/4"
Nominal diameter (DN) [mm] 7
Flow rate, hose Ø 6mm [l/min] 350
Flow rate, hose Ø 8mm [l/min] 500
Flow rate, hose Ø 10mm [l/min] 600
Recommended hose diameter [mm] 8
Pressure loss, input/output [bar] 1
Min. operating pressure [bar] 2
Max. operating pressure [bar] 10
IP protection class 67
Min. ambient temperature [°C] -10
Max. ambient temperature [°C] 80
Valve switching time [ms] 10
Weight [kg] 0.2

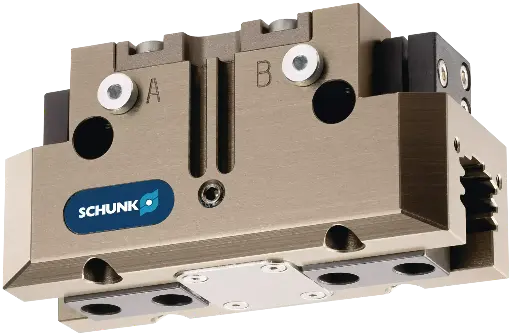

371471

Stroke per jaw [mm] 4
Opening force [N] 1280
Opening force (with finger lengths of 0 mm) [N] 1490
Min. spring force [N] 320
Weight [kg] 0.6
Recommended workpiece weight [kg] 4.3
Fluid consumption double stroke [cm³] 42.5
Min. operating pressure [bar] 4
Max. operating pressure [bar] 6.5
Nominal operating pressure [bar] 6
Min. air purge pressure [bar] 0.5
Max. air purge pressure [bar] 1
Closing time [s] 0.05
Opening time [s] 0.03
Closing/opening time with spring [s] 0.1
Max. permissible finger length [mm] 100
Max. permissible weight per finger [kg] 0.6
IP protection class 40
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 90
Repeat accuracy [mm] 0.01
Cleanroom class ISO 14644-1 5
Length X [mm] 96
Width Y [mm] 42
Height Z [mm] 67
Moment Mx max. [Nm] 60
Moment My max. [Nm] 95
Moment Mz max. [Nm] 55
Max. axial force Fz max. [N] 1500

370102

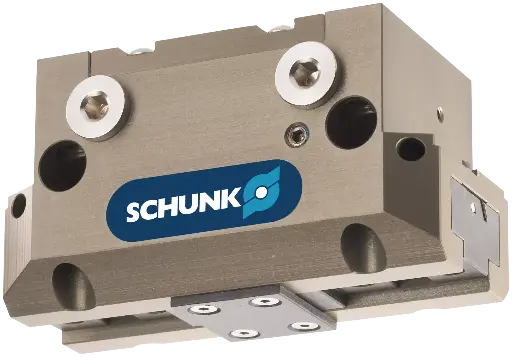

Pinza universal PGN, Tamaño: 100, neumática Carrera por mordaza: 10 mm Fuerza de cierre: 550 N Fuerza de apertura: 620 N Temperatura ambiente máx.: 90 °C

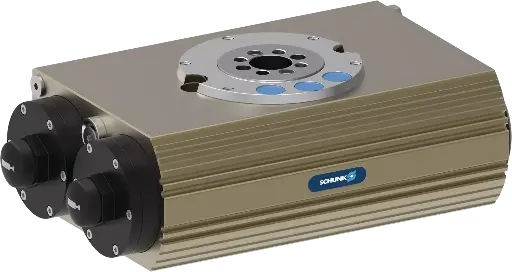

362802

SRU+60-W-90-3-8 SWIVEL UNIT

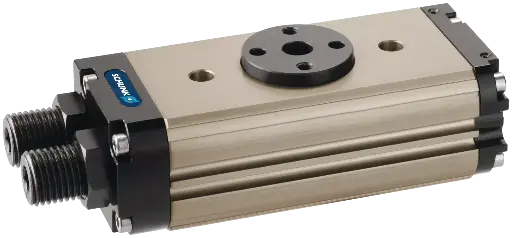

356870

Ángulo de rotación [°] 180
Capacidad de ajuste de la posición final [°] 90
Amortiguación de posición final Elastómero
Par [Nm] 1.15
Número de posiciones intermedias ninguno
Clase de protección IP sesenta y cinco
Peso [kg] 0,47
Consumo de líquido (2x ángulo nom.) [cm³] 15.9
Presión nominal de funcionamiento [bar] 6
Mín. presión de funcionamiento [bar] 4.5
Máx. presión de funcionamiento [bar] 8
Diámetro de la manguera de conexión 3x1,8x0,6
Mín. temperatura ambiente [°C] 5
Máx. temperatura ambiente [°C] 90
Precisión de repetición [°] 0,07
Longitud X [mm] 122
Ancho Y [mm] 43
Altura Z [mm] 34,6
Momento Mi máx. [Nuevo Méjico] 4.5
Máx. fuerza axial Fz máx. [NORTE] 330

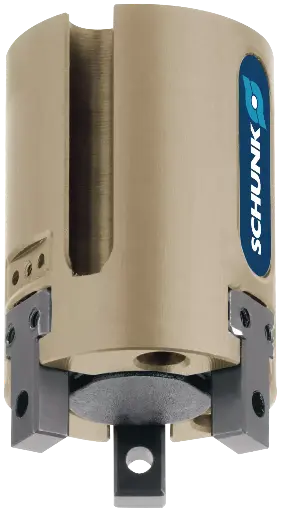

340490

MPZ 20, CONCENTRIC GRIPPER

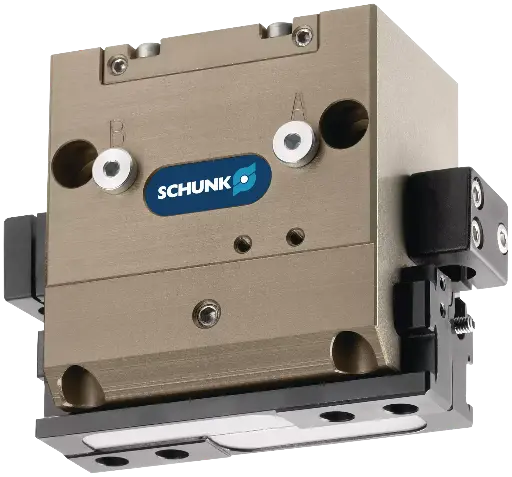

340365

PGF 64 Pinza universal PGF, Tamaño: 64, neumática Carrera por mordaza: 11.5 mm Fuerza de cierre: 360 N Fuerza de apertura: 380 N Temperatura ambiente máx.: 90 °C

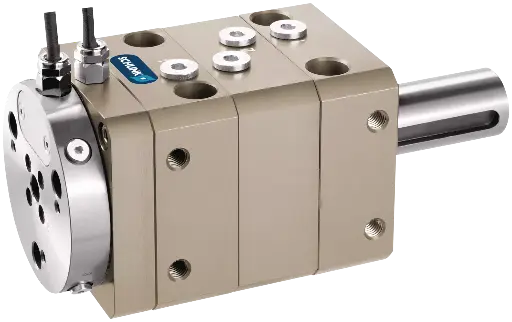

323280

0323280 DDF80-SE, ROTATIONAL FEED THROUGH

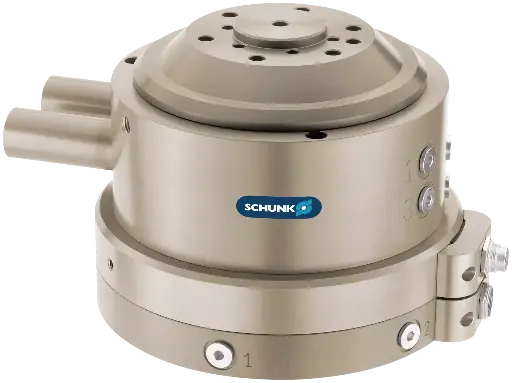

323093

Automation Industry Product
